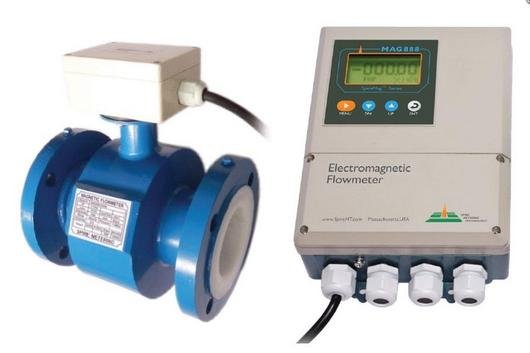

Electromagnetic Water Flow Meter

A High-performance electromagnetic flowmeter accurately measures the flow volume of any conductive liquids, such as water, salt water, sewage, pulps, slurry, acid, any mixtures of liquids and solids which have a specific minimum of 5μS/cm of electrical conductivity. Our Clients has been widely used in municipal, wastewater treatment, irrigation, chemicals, as well as industrial liquid processes.

Model: QTLD-DN5031112ECB

Brand: Q & T, China.

Description:

  1. Medium: Liquid
  2. Standard measure temperature: -10~ – 125℃
  3. Accuracy: ±0.5%
  4. Liner material: PTFE
  5. Electrode material: SS 316L
  6. Body & Flange: Carbon steel
  7. Flange type: ANSI 150#
  8. Coil material: Copper
  9. Installation: Remote display
  10. Output Signal: 4-20mA, Pulse, RS485
  11. Power supply: AC220/DC24V
  12. Normal pressure:1.6Mpa
  13. Protection Class: IP68
  14. Display: Local flow rate, Total, Flow Velocity

Warranty: Two Year.

Uses: pipelines & Refineries.

Advantages:

  • Minimum obstruction in the flow path yields minimum pressure drop.
  • It can measure forward as well as reverse flow with equal accuracy.
  • No moving parts to wear and tear.
  • Corrosive or slurry fluid flow.
  • No pressure loss
  • Optional HART communication interface
  • Self-diagnosing capability to minimize operational downtime.
  • Reduce maintenance costs, specifically from debris/particle damage, as there are no moving components.

Disadvantages:

  • Requires electrical conductivity of the fluid

To know more about this Electromagnetic water flow meter, please contact us.

Description

We Are The Leading Supplier of the Water Flow Meter, Water Flow Sensor, Electromagnetic Water Flow Meter in Bangladesh. We Provide The Best Electromagnetic Water Flow Meter in Bangladesh to our clients as well as customers.

An electromagnetic flow meter is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water-based. Magnetic flow meters will generally not work with hydrocarbons, distilled water, and many non-aqueous solutions). Magnetic flow meters are also ideal for applications where low-pressure drop and low maintenance are required.

A High-performance electromagnetic flowmeter accurately measures the flow volume of any conductive liquids, such as water, salt water, sewage, pulps, slurry, acid, any mixtures of liquids and solids which have a specific minimum of 5μS/cm of electrical conductivity. Our Clients has been widely used in municipal, wastewater treatment, irrigation, chemicals, as well as industrial liquid processes.

Model: QTLD-DN5031112ECB

Brand: Q & T, China.

Description:

  1. Medium: Liquid
  2. Standard measure temperature: -10~ – 125℃
  3. Accuracy: ±0.5%
  4. Liner material: PTFE
  5. Electrode material: SS 316L
  6. Body & Flange: Carbon steel
  7. Flange type: ANSI 150#
  8. Coil material: Copper
  9. Installation: Remote display
  10. Output Signal: 4-20mA, Pulse, RS485
  11. Power supply: AC220/DC24V
  12. Normal pressure:1.6Mpa
  13. Protection Class: IP68
  14. Display: Local flow rate, Total, Flow Velocity

Warranty: Two Year.

Uses: pipelines & Refineries.

Advantages:

  • Minimum obstruction in the flow path yields minimum pressure drop.
  • It can measure forward as well as reverse flow with equal accuracy.
  • No moving parts to wear and tear.
  • Corrosive or slurry fluid flow.
  • No pressure loss
  • Optional HART communication interface
  • Self-diagnosing capability to minimize operational downtime.
  • Reduce maintenance costs, specifically from debris/particle damage, as there are no moving components.

Disadvantages:

  • Requires electrical conductivity of the fluid

To know more about this Electromagnetic water flow meter, please contact us.
