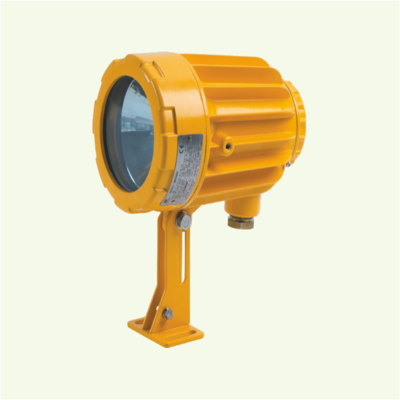

Explosion Proof LED Light Fittings in Bangladesh

Explosion Proof LED Light Fittings in Bangladesh
Explosion Proof LED Light Fittings in Bangladesh

The best lighting option for dangerous areas with combustible dust, vapors, or gasses is an explosion-proof LED light fitting. These light fittings, which are commonly used in industries including mining, power plants, chemical processing, and oil and gas, are made to prevent ignition and guarantee safety.

These LED light fittings are made of sturdy, corrosion-resistant materials like stainless steel or aluminum alloy, and they are designed to last for a long time in challenging circumstances. The risk of ignition in explosive-prone places is eliminated by their explosion-proof design, which guarantees that no heat or sparks escape from the enclosure. They are a dependable option for industrial applications since they are certified to international safety standards like ATEX and IECEx and adhere to international rules.

These fittings’ energy-efficient LED technology, high brightness output, low maintenance needs, and resilience to vibration and harsh weather are some of their key characteristics. They are versatile for a range of lighting requirements because they come in a variety of wattages and mounting options.

Corporate Station Bangladesh is a reliable supplier of explosion-proof LED light fittings in Bangladesh. They offer approved lighting systems designed to satisfy certain industrial needs and are well-known for their superior goods and knowledge of industrial safety solutions.

Use Corporate Station Bangladesh’s Explosion Proof LED Light Fittings to securely illuminate dangerous places!

Specification

Global (IECEx) IECEx CNEX 18.0033X
Gas and dust Ex db IIB T3 Gb

Ex tb IIIC T190℃ Db

Europe (ATEX) CNEX 18 ATEX 0026 X
Gas and dust 20190603152349458.jpg@!w400

II 2 G Ex db IIB T3 Gb

20190603152349458.jpg@!w400

II 2 D Ex tb IIIC T190℃ Db IP66

Certificates IECEx; ATEX
Conformity to standards EN; IEC
Degree of protection IP66



Data

Enclosure Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
Glass cover Toughened glass, impact resistance and high light transmission
Exposed fastener Stainless steel
Available lamp Halogen tungsten lamp
Lamp holder GY6.35
Lamp power (W) 35W, 50W
Adaptable voltage DC 12V
Rated voltage 220~240V AC 50Hz,12V DC; 24V AC/DC
Earthing protection M5 (internal & external earth bolts)
Ambient temperature -60℃~+60℃
Terminal 3 x 1.5~2.5mm2 (L+N+PE)
Cable entries 1 x G3/4″
Cable gland Supplied with seal gasket and gland nut, cable gland on request.
Available cable outer diameter Φ10~Φ14 (mm)

To know more about product check us here

For more information About us click here
