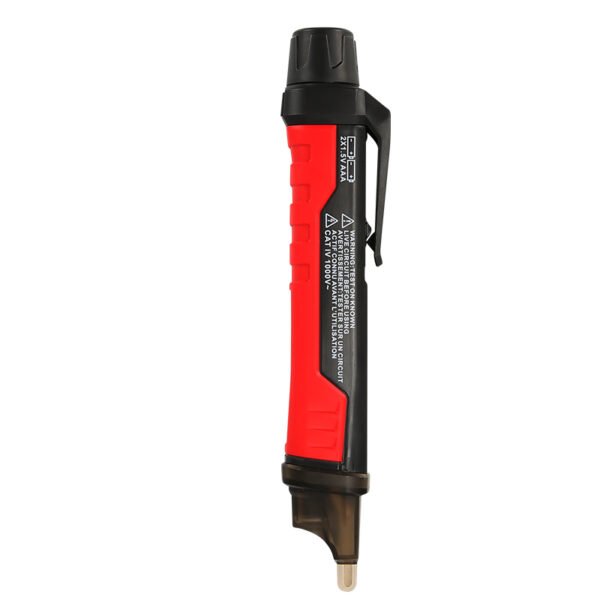

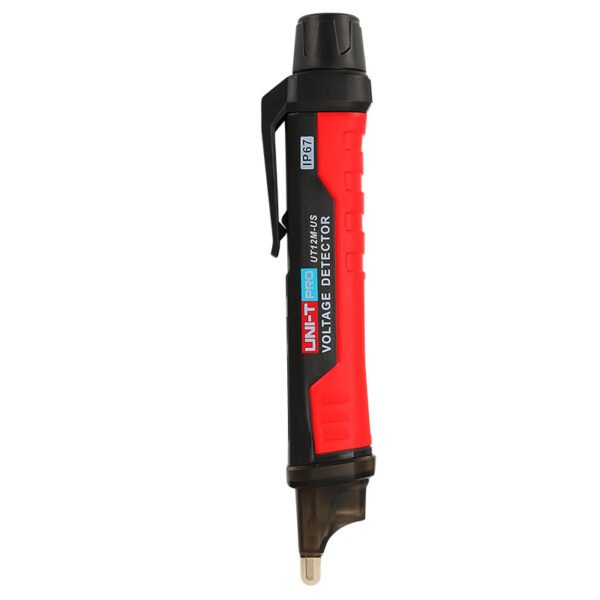

UT12M-US AC Voltage Detector
UT12E-US and UT12M-US are UNI-T’s professional grade voltage detectors.They are designed with IP67 dust/water resistant and can withstand 2 metersdrop. These durable devices are great for working in harsh environments. UT12E-US has an optional vibration mode and UT12M-US is able to detectmagnetic fields.
Features:
Applications:
- Description
- Reviews (0)
Description
Description
UT12E-US and UT12M-US are UNI-T’s professional grade voltage detectors.They are designed with IP67 dust/water resistant and can withstand 2 metersdrop. These durable devices are great for working in harsh environments. UT12E-US has an optional vibration mode and UT12M-US is able to detectmagnetic fields.
Features:
7. Magnetic solenoiddetection
Applications:
Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines,underground mining lighting, cables with thick insulation layer and other weakelectromagnetic AC signals.
Specifications |
|
| Model | UT12M-US |
| AC voltage (Low) | 24V~1000V |
| AC voltage (High) | 90V~1000V |
| Frequency range | 50/60Hz |
| Magnetic solenoid detection | √ |
| Built-in flashlight | √ |
| ※Audible (buzzer) and visual (LED) indication | √ |
| Buzzer | √ |
| LED indication | √ |
| Auto power off | √ |
| Low voltage indication | √ |
| Double injection molding | √ |
| Drop test | 2m |
| General Characteristics | |
| Power | 1.5V battery (R03) x 2 |
| Product color | Red and grey |
| Product net weight | 72g |
| Product size | 160.5mm x 21.5 mm x 25mm |
| Standard accessories | Batteries |
| Standard individual packing | Blister, English manual |
| Standard quantity per carton | 40pcs |
| Standard carton measurement | 415mm x 245 mm x 235mm |
| Standard carton gross weight | About 3.8kg |
