Description

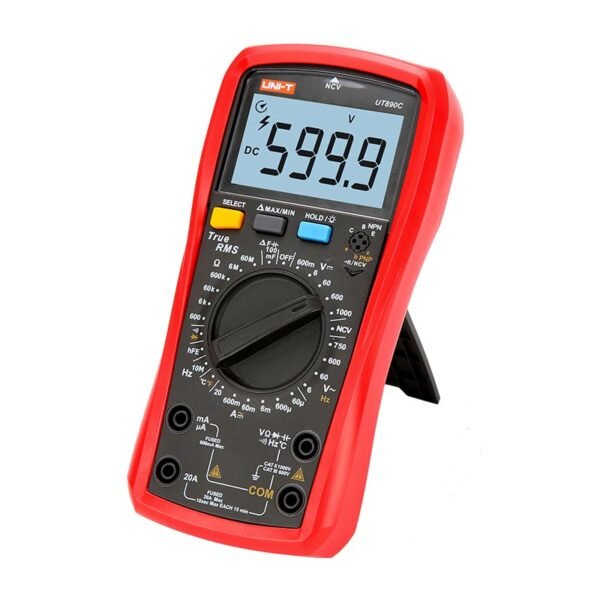

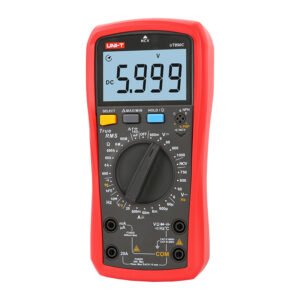

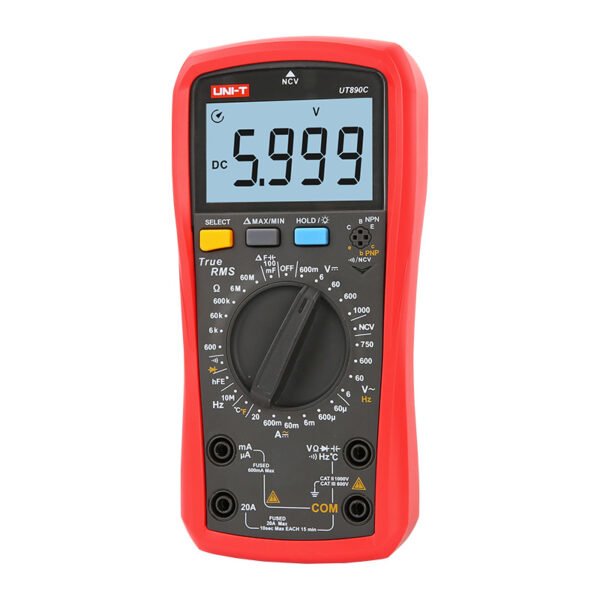

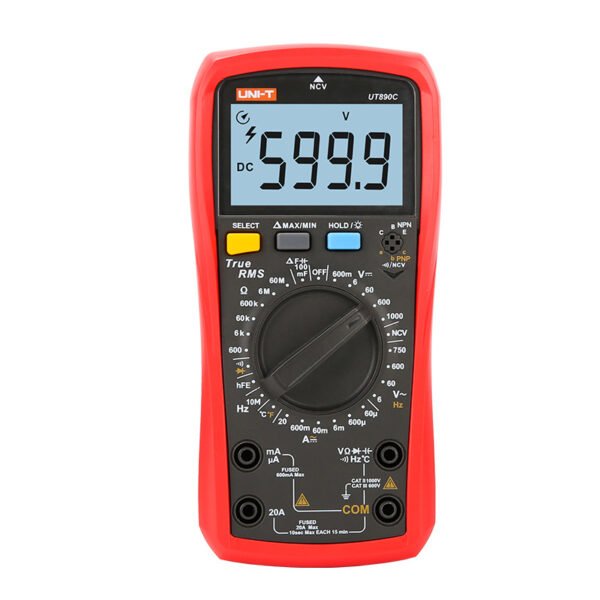

The UT890C/D+ 6000-count true RMS digital multimeters are designed with large LCD display.
The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.

Applications:

1. Electrical switchboards

2. HVAC systems

3. Electrical circuit faults detection

4. Installation or maintenance of electronics/factory equipment

5. Electronics component development, circuit board design

6. Users who need to distinguish between neutral/live wire frequently

Tech. Specifications:

Specification Range UT890C
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz~10kHz ±(0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10)
Frequency 9.999Hz~9.999MHz ±(1.0%+5)
Temperatue –40℃~1000℃/–40°F~1832°F

±(1.5%+5)
Fetures
Display Count 6000
Manual Range
NCV
hFE
Diode Test
Continuity Test
True RMS
Fuse blowing alarm
Acousto-optic indication(NCV/continuity)
High voltage false detection 1000Vrms
Current (AC/DC) mode memory
Over-current alarm ≥20A
Low Battery Indication ≤2.5V
Data Hold
REL
Max/Min V 、A
Auto  Power Off 15Min
Back light 30s
Operation Temperature 0℃~40℃
Safety CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2
Product color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
Standard Individual Packing Gift Box, Manual
Standard Quantity Per Carton 40pcs
Standard carton measurement 690mm x 450mm x 340mm
Standard carton gross weight 23Kg
