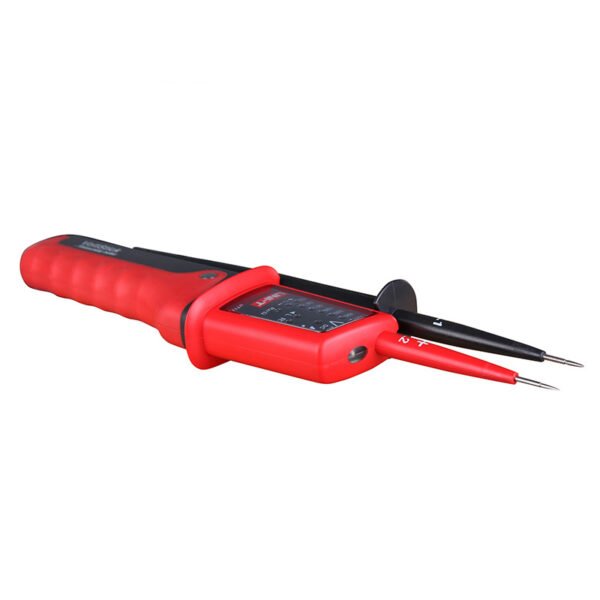

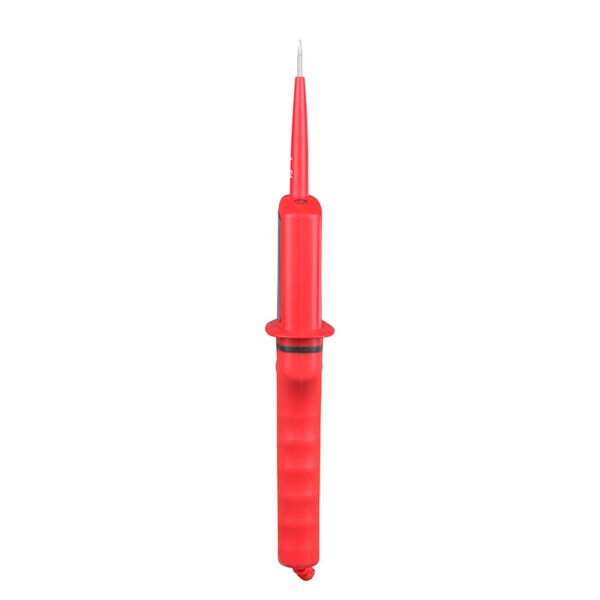

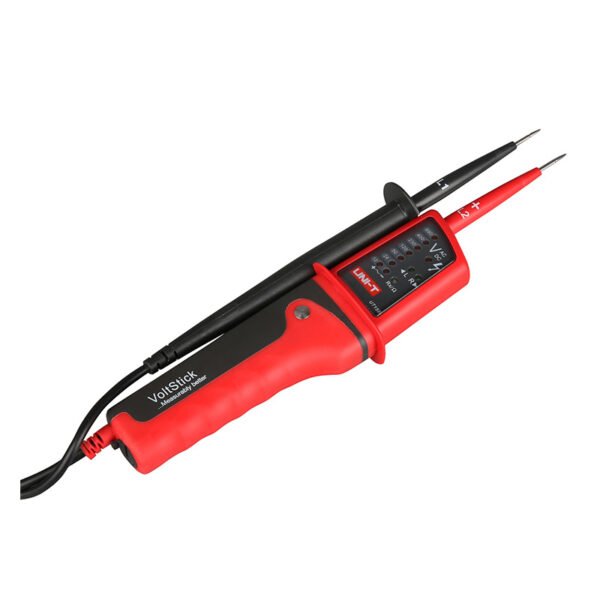

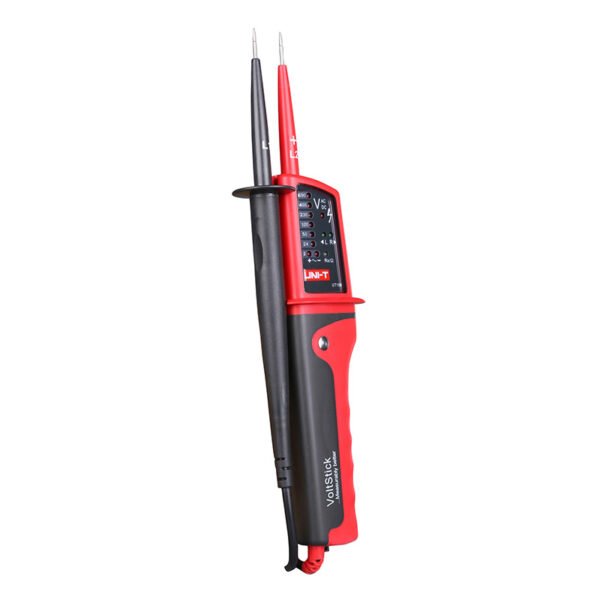

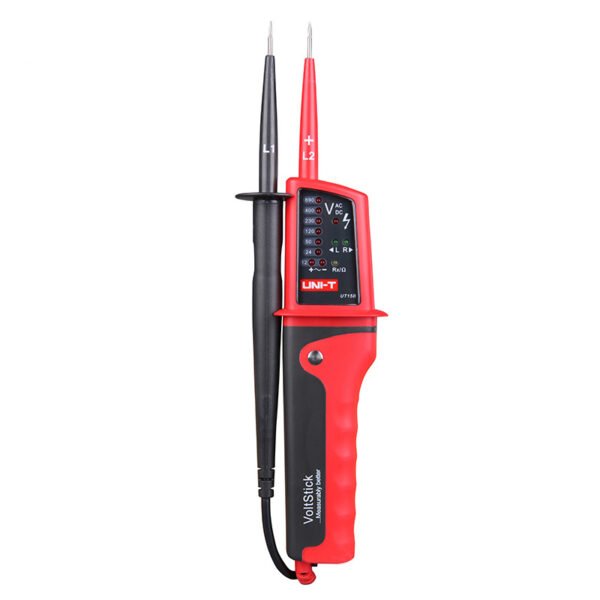

UT15B Waterproof Type Voltage Tester
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
Applications:
It is applicable to smelting, electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on.
Compare
- Description
- Reviews (0)
Description
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
Applications:
It is applicable to smelting, electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on.
Tech. Specifications:
| Specifications | Range | UT15B |
| LED AC/DC voltage indication (V) | 12V | 0~12V |
| 24V | 17V±2V | |
| 50V | 35V±5V | |
| 120V | 80V±15V | |
| 230V | 165V±20V | |
| 400V | 300V±30V | |
| 690V | 510V±40V | |
| Phase rotation test | Operating Voltage: 0V~690V | √ |
| Frequency: 50Hz~60Hz | ||
| Single lead (L2) voltage detection | Operating Voltage: 0V~690V | √ |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: 0~100kΩ | √ |
| Beeper and LED light Indicator | ||
| Polarity detection | Positive & Negative | √ |
| Features | ||
| Water-proof (IP65) | √ | |
| Auto range | √ | |
| Work light | √ | |
| Low battery indication | Short circuit two leads, LED and beeper off when the bettery is low | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) × 2 | |
| Display | UT15C- 23mm × 12mm | |
| Product color | Red and grey | |
| Product net weight | 210g | |
| Product size (W x H x D) | 275mm × 51mm × 30mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30 pcs | |
| Standard carton measurement | 440mm × 395mm × 455mm (0.079CBM Per standard carton) | |
| Standard carton gross weight | 17kg | |
