UT219E Professional Clamp Meter

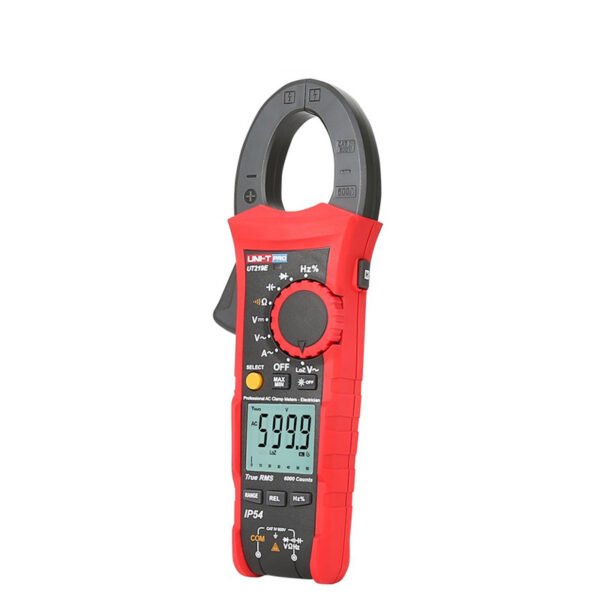

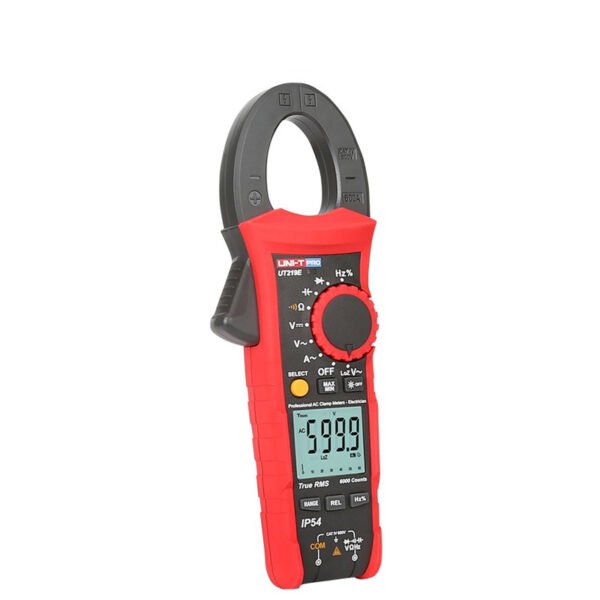

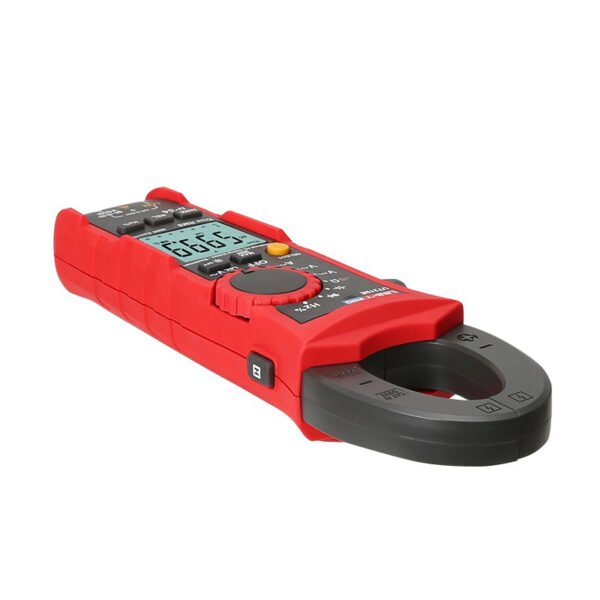

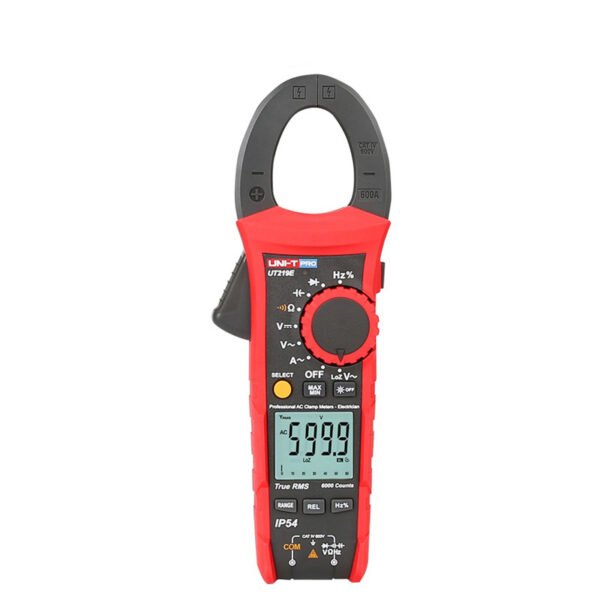

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features:
1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
Compare
- Description
- Reviews (0)
Description
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features:
1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
Tech. Specifications:
| Specifications | Range | UT219E |
| AC current (A) | 600A | ±(1.8%+6) |
| AC voltage (V) | 600V | ±(1%+6) |
| DC voltage (V) | 600V | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) |
| Duty cycle | 0.1%~99.9% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw opening | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~400Hz | |
| AC voltage frequency response | 40Hz~400Hz | |
| Diode test | 3V | |
| Measurement sampling rate | 3 times/s | |
| Analog bar sampling rate | 10 times/s | |
| Analog bar | 31 segment | |
| Display interface (LCD) | Single | |
| Auto power off/MAX/MIN | √ | |
| Low battery indication | √ | |
| Data hold (H)/Relative mode (REL) | √ | |
| ZERO mode | √ | |
| Function selection (SELECT) | √ | |
| Auto backlight/2m drop test | √ | |
| IP rating | IP54 | |
| Input impedance | ≥10MΩ | √ |
| General Characterisitics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 35mm x 31mm | |
| Product color | Red and grey | |
| Product net weight | 310g | |
| Product size | 234.6mm x 82mm x 47mm | |

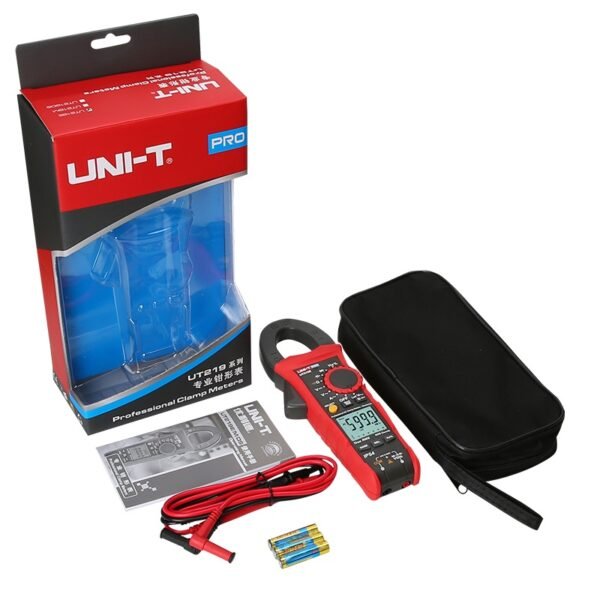

| Standard accessories | Test leads, batteries, carrying bag, PC software CD | |
| Standard individual packing | Gift box, blister, English manual (German, French, Spanish optional) | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 490mm x 295mm x 330mm | |
| Standard carton gross weight | 8kg | |
