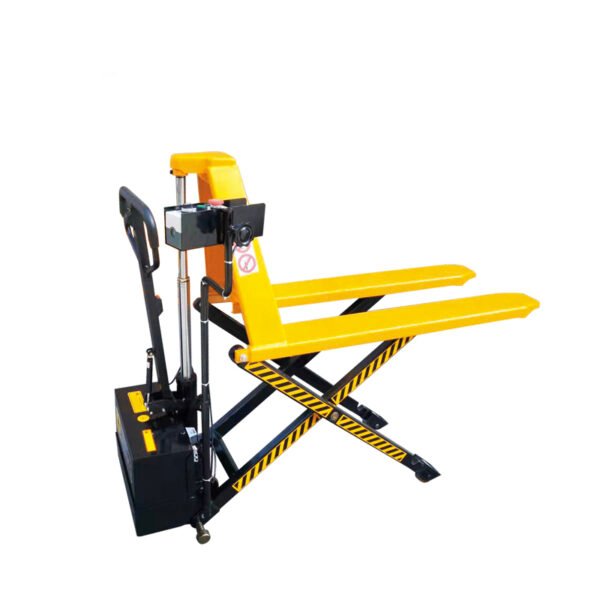

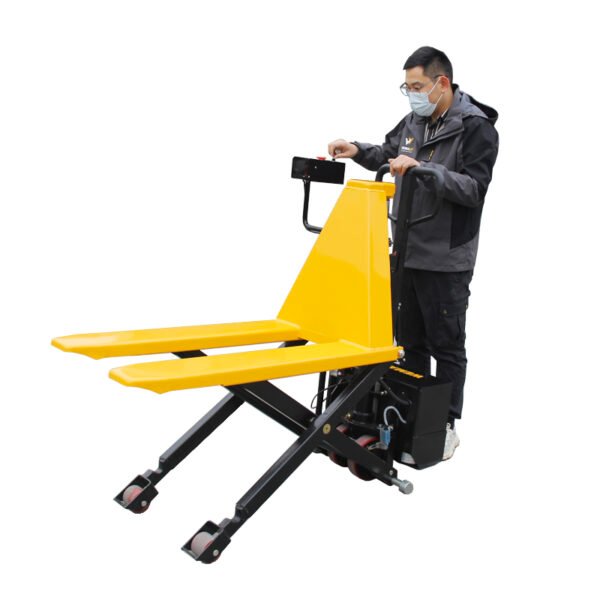

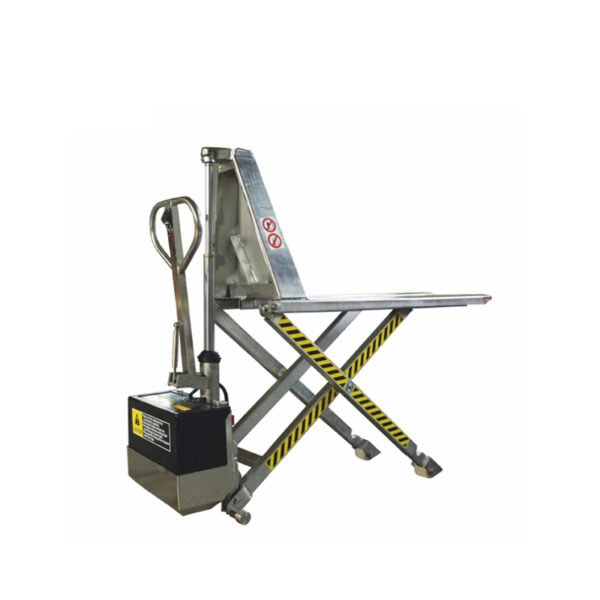

Products - Full Electric High Lift Truck

Description

Description:

• Scissor lift pallet truck max. lifting up to 800mm.
• Heavy duty design to reliable quality.
• Takes 10-12 seconds pumping from the bottom to the top.
• Safety overload system prevents the truck from being used beyond its rated capacity.
• Lifting by both manual and electric, lowering by manual.

Specifications:

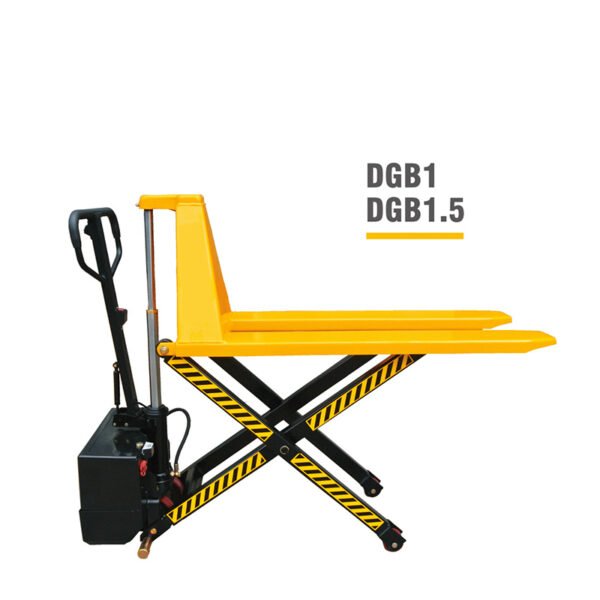

Model	DGB1	DGB1	DGB1.5	DGB1.5
Load Capacity	1000	1000	1500	1500
Min/Max. Height	85/800	85/800	85/800	85/800
Fork Width	520	680	520	680
Fork Length	1140/1500	1140/1500	1140/1500	1140/1500
Voltage	12/63	12/63	12/63	12/63
Input/output Voltage	220~240/12	220~240/12	220~240/12	220~240/12
Net Weight	140/165	146/171	142/167	148/173
Packing Size	218*58*71	218*74*71	218*58*71	218*74*71
Load in 20′ container	60/30	42/21	60/30	42/21



Model	DGB1B	DGB1B	DGB1.5B	DGB1.5B
Load Capacity	1000	1000	1500	1500
Min/Max. Height	85/800	85/800	85/800	85/800
Fork Width	560	680	560	680
Fork Length	1190	1190	1170	1170
Voltage	12/68	12/68	12/75	12/75
Input/output Voltage	220~240/12	220~240/12	220~240/12	220~240/12
Net Weight	158	163	170	175
Packing Size	214*62*111	214*62*111	214*62*111	214*62*111
Load in 20′ container	72	56	72	56

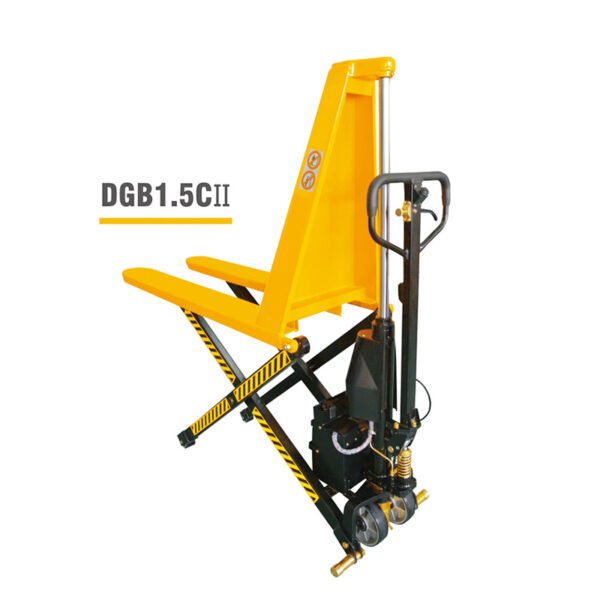

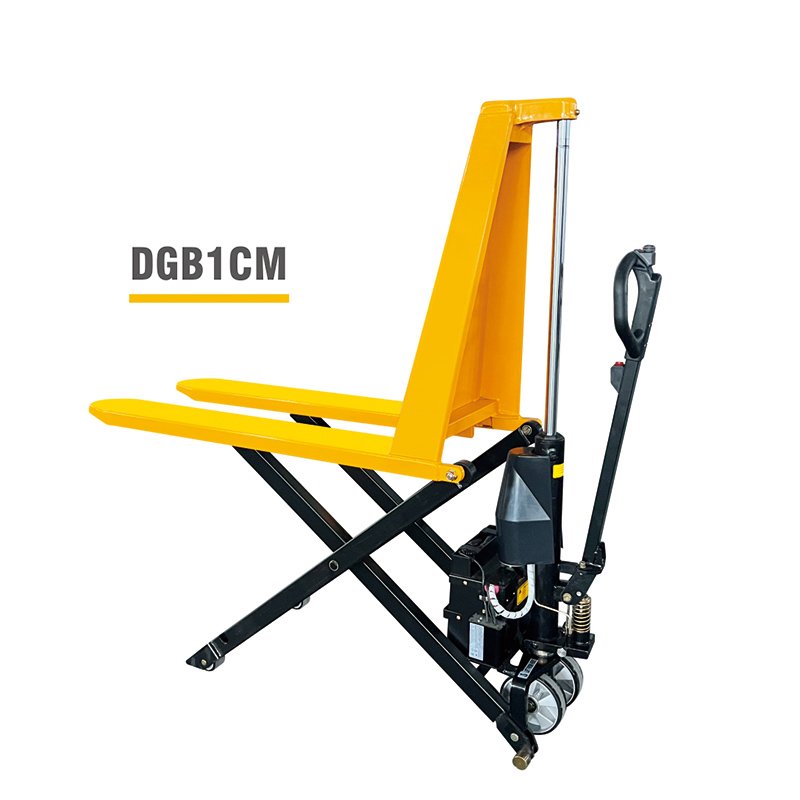

Model	DGB1CM	DGB1CM	DGB1.5CII	DGB1.5CII
Load Capacity	1000	1000	1500	1500
Min/Max. Height	85/800	85/800	85/800	85/800
Fork Width	540	680	540	680
Fork Length	1170	1170	1150	1150
Voltage	12/52	12/52	12/52	12/52
Input/output Voltage	220~240/12	220~240/12	220~240/12	220~240/12
Net Weight	130	140	150	160
Packing Size	214*62*111	214*62*111	214*62*111	214*62*111
Load in 20′ container	72	56	72	56
