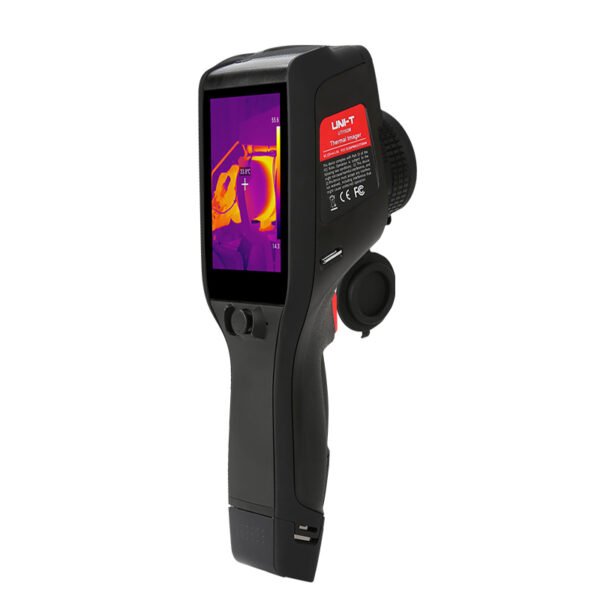

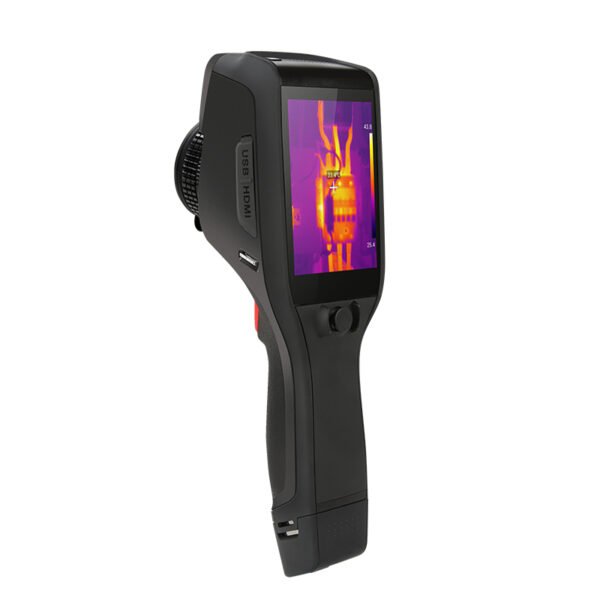

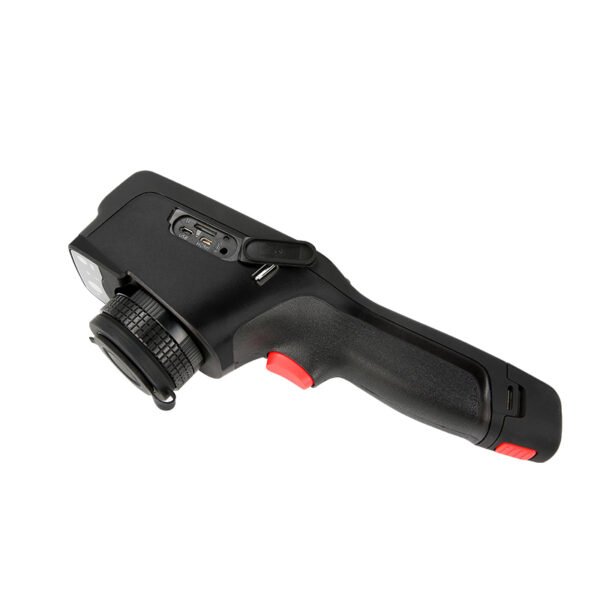

UTi192M Thermal Imager
Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
Compare
- Description
- Reviews (0)
Description
Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
Tech. Specifications:
| Specifications | |
| Model | UTi192M |
| IR resolution | 192×144 pixels |
| Field of view (FOV) | 37.8°×28.8° |
| Thermal sensitivity (NETD) | 50mk |
| Temperature range | -20~150℃/100~650℃/650~1500℃ |
| Spatial resolution (IFOV) | 3.45mrad |
| Frame rate | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Focus | Manual focus |
| Digital zoom | 1.1~4× |
| Display modes | Thermal, image blending, visible light, PIP |
| Display | 4”LCD |
| Auto capture of Hi/Lotemperature | √ |
| Isotherm | √ |
| Measurement modes | Point, area, line |
| WIFI | √ |
| PC analysis software | √ |
| IP rating | IP54 |
| General Characteristics | |
| Power | Li-ion battery (7.4V 2300mAh) |
| Product color | Red and grey |
| Product net weight | 840g |
| Product size | 274mm x 106mm x 78mm |

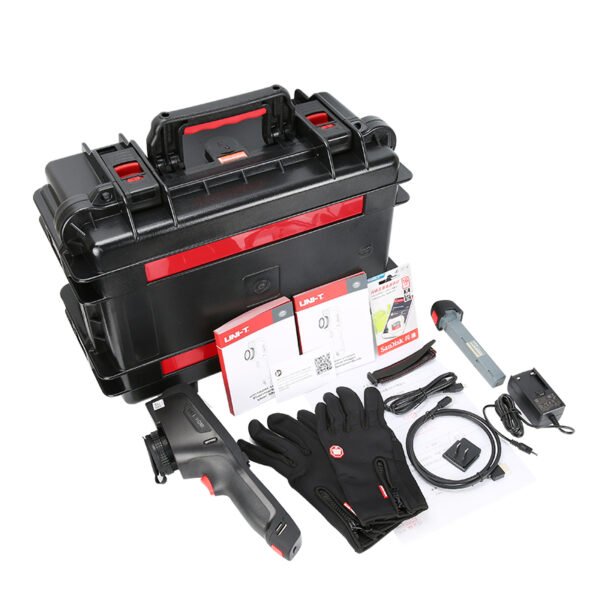

| Standard accessories | Adapter, adapter plugs, battery, USB cable, HDMI cable, SD Card |
| Standard individual packing | Gift box, carrying bag, English manual, quick start guide |
| Standard quantity per carton | 1pcs |
| Standard carton measurement | 470mm x 355mm x 210mm |
| Standard carton gross weight | About 4kg |
