Description

We provide High Quality Rescue Pulley System of DeltaPlus Brand in Bangladesh. Rescue Pulley System Equipment used to perform the rescue operation of person who has suffered a fall. Suitable for one rescuer. The rope TC009 as per customer requirement for a maximum of 60 m.

Materials: Aluminum; Polyamide; Polyester

Strong points: Equipped with a storage bag TC008. The system will be ready to perform a rescue operation.

Instructions for use:

The device is set up onto a suitable anchor point. The end of the lower pulley is connected to the telescopic rod and attached to the rear anchor point of the rescuee. The free end of the rope is then pulled downwards by means of the ascender handle. Once the tension on the activated lanyard is reduced, the rescuee is unhooked and taken down slowly by means of releasing or feeding the rope into the pulley.

The equipment should be used only under the conditions stated and employment expectations. Attachment point must be located above the user.

Beware: Secure yourself against falls starting the descent preparation stage!

After a rescue or a descent by rappel, make your equipment be controlled by the manufacturer or by persons authorized by him. Control at least once a year your equipment by the manufacturer or by persons authorized by him, even if the rappelling equipment has not been used.

Beware: Do not modify the equipment! Do not replace any equipment parts. Every equipment or piece of equipment is delivered with instructions for use and / or test. These instructions must always be jointed to your equipment.



Limits to use:

The equipment should be used only by people trained in its use and having the necessary knowledge. Attention: Do not pass the cable on sharp edges. Avoid sharp objects, sparks from welding and other risks of cable damage or cable breaking.



Instructions for storage:

Store in a dry and non-fat place, non-corrosive atmosphere, free from any kind of projections and heat sources.



Instructions for cleaning / maintenance:

Clean with water then wipe with a rag and hang in a ventilated room.



Performances

Each individual component conforms to the EN standards as below.

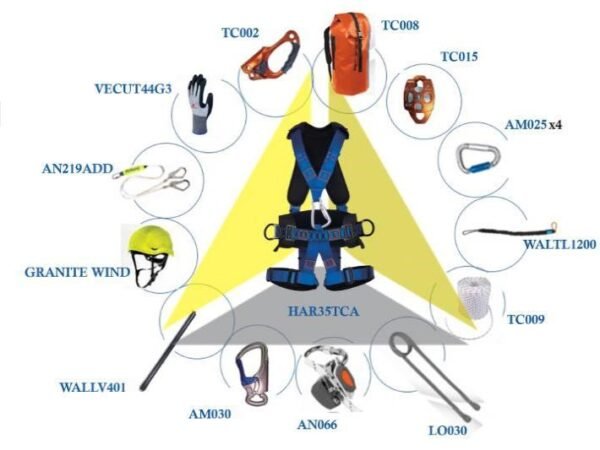

Description Of Each Components

• Two color harness with positioning belt with thermoformed back and shorts. 8 adjustable buckles. 1 carabiner (AM012 type). Harness part 2 fall arrester anchorage points (back – front). Belt part: 2 work positioning attachment points (lateral) + 1 suspension point.

• Safety karabiner, automatic 1/4 rotation ring, 25-mm opening.

• Braided rope Ø 10.5 mm – Length on request.

• Double pulley with oscillating flanges in aluminium alloy for braided rope less than Ø 16 mm.

• Braided Single extensible tool hanging lanyard with one removable connector

• Lanyard and anchorage point in tubular webbing. 2 sewn loops. Width 25 mm. Length: 2 m

• Telescopic rod adjustable claw connection – folded length 80cm

• Ventilated ABS safety helmet. Mountain helmet style: without visor for the best vertical vision. Less encumbrance. Light. Polyamide cradle: 3 textile bands with 8 fixing points. Thermoformed sweat band. Innovative adjustable ROTOR® system (patented): head sizes 53 to 63 cm

• Energy Absorber with double lanyard and connectors

• ECONOCUT® high performance polyethylene fibre. Polyurethane coating on palm and fingertips. Elastic cuff 6 cm. Gauge 13

• 3 multi-function products in 1:

1- Sliding fall arrester on braided rope anchorage line ø 10.5 mm + 1 AM002.

2- Stopper on rope: The rope’s adjusting device used in the safety bracket (type A) accompanies the user during his changes of position and locks under the action of a static or dynamic load.

3- Stopper on rope: The ascension device on its work support, locks under the action of a load in one direction and slides freely in the opposite direction (type B)

• PVC fabric carrying bag. Sizes: 30 x 65 cm.

• Automatic lock hook in aluminium alloy. Opening 25 mm.

• Right hand ascension handle in aluminium alloy. Works on braided rope Ø 8 to 13 mm.
