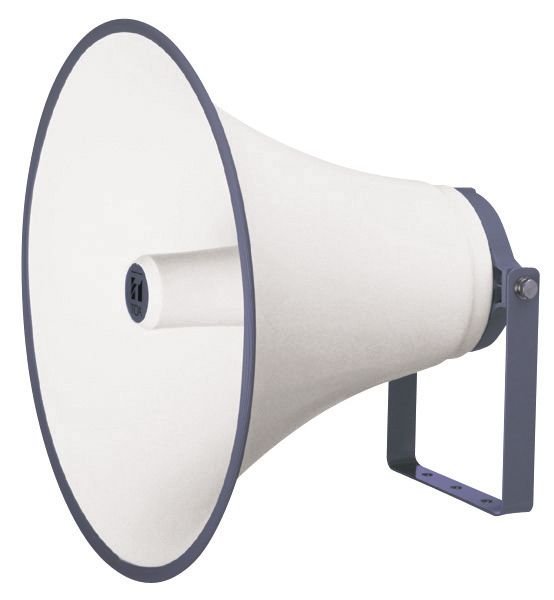

Products - TH-650 Reflex Horn Speaker

Description

The TH-650 is a speaker horn to be used in combination with an optional driver unit. Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.

• Weatherproof construction for outdoor use
• Durable construction provides reliable operation over a long time
• The round shape ensures high speech clarity and sound quality and symmetrical sound dispersion – also suitable for music reproduction
• Shock-resistant
• Aluminum horn with durable powder coating
• For use with drivers TU-631, TU-651, or TU-631M / TU-651M (optional)

Specifications:

• Brand: TOA
• Model: TH-650
• Applicable Drivers: TU-631, TU-631M, TU-651, TU-651M
• Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with a driver.)
• Frequency Response: 200 Hz – 6 kHz (When operated with a driver.)
• Dust/Water Protection: IP65 (When operated with a driver.)
• Driver Coupling: 1 – 3/8 18 threads (inch screw)
• Operating Temperature: -20 ℃ to +55 ℃ (must be free from dew condensation)
• Finish: Horn flare and flange-: Aluminum, off-white, powder coating; Reflector horn-: ABS resin, off-white; Bracket holder-: Aluminum, gray, powder coating; Bracket-: Steel, gray, powder coating; Screws and bolts-: Stainless steel;
• Dimensions: φ500 × 394 (D) mm
• Weight: 2.9 kg
